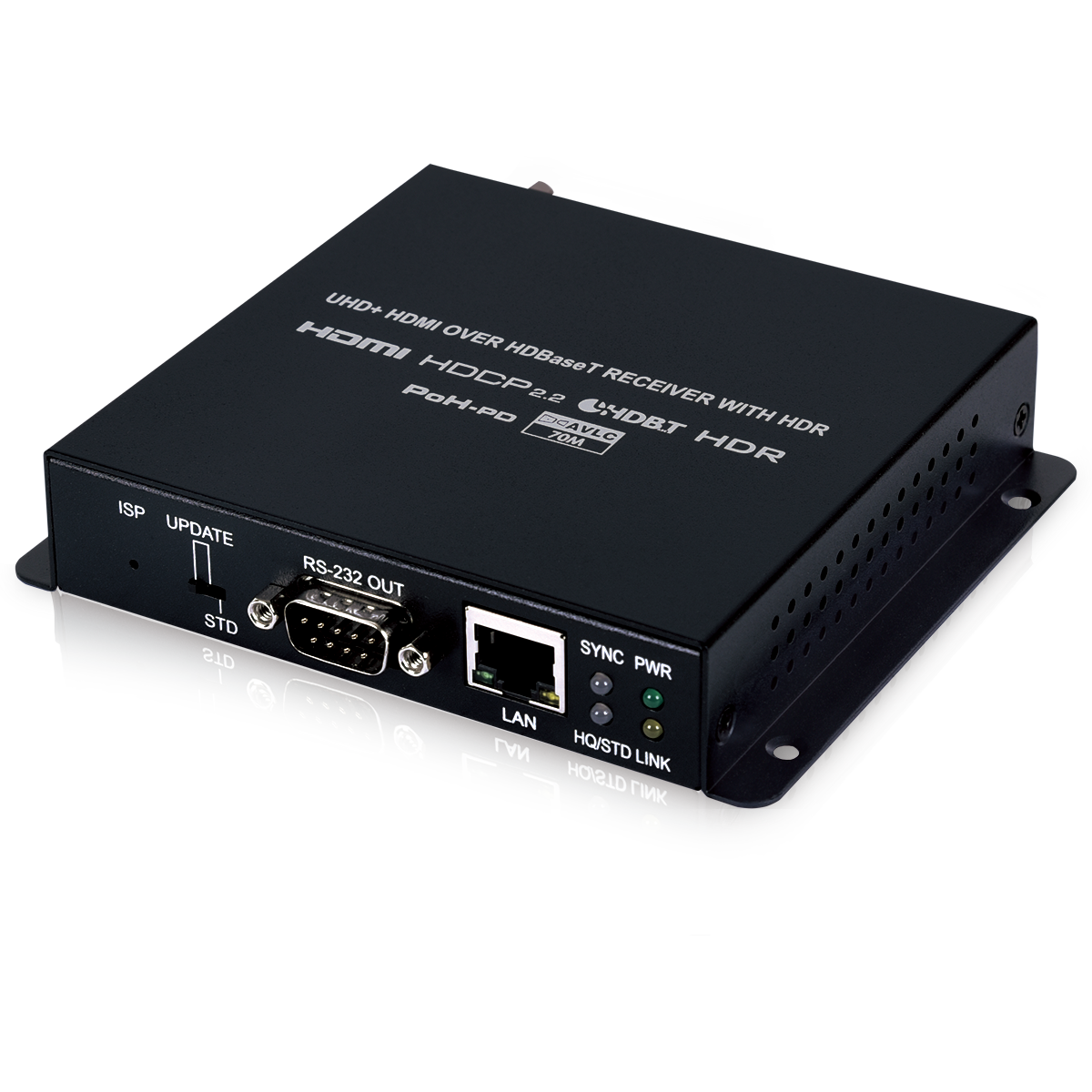

Bộ mở rộng tín hiệu CYP CH-1527RXV

Mã sản phẩm: CH-1527RXV
Thương hiệu: Cypress (CYP)

CH-1527RXV là CH-1527RXV (EOL) của Cypress (CYP), thuộc danh mục Extender; phù hợp triển khai hệ thống nghe nhìn tích hợp chuyên nghiệp.

Giá Liên Hệ

Xuất xứ:: Đài Loan
Bảo hành:: Theo chính sách hãng

Hàng chính hãng, hỗ trợ kỹ thuật và bảo hành theo chính sách nhà sản xuất.

Tính năng và lợi ích

Thông tin được tổng hợp theo cấu hình tham khảo. Vui lòng liên hệ kỹ sư VN TLH để xác nhận cấu hình trước khi đặt hàng.

HDMI with HDR, 3D & 4K@60Hz support
Supports Deep Color input and output up to 12-bit
Supports CEC bypass
Simultaneous transmission of video, audio and data over a single Cat.5e/6/7 cable up to 100m (328ft) at 1080p and 70m (246ft) at 4K
Supported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control (Bidirectional IR/RS-232 pass-through)
Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual quality
The AVLC function allows manual selection between High Quality (Full bandwidth) mode and Standard mode (Lower bandwidth, useful for longer cable runs with 4K sources)
Supports standard IEEE 802.3 AT 48V PoH from Transmitter (PSE) to Receiver (PD) (compatible Receivers only)

CH-1527RXV — CH-1527RXV (EOL).

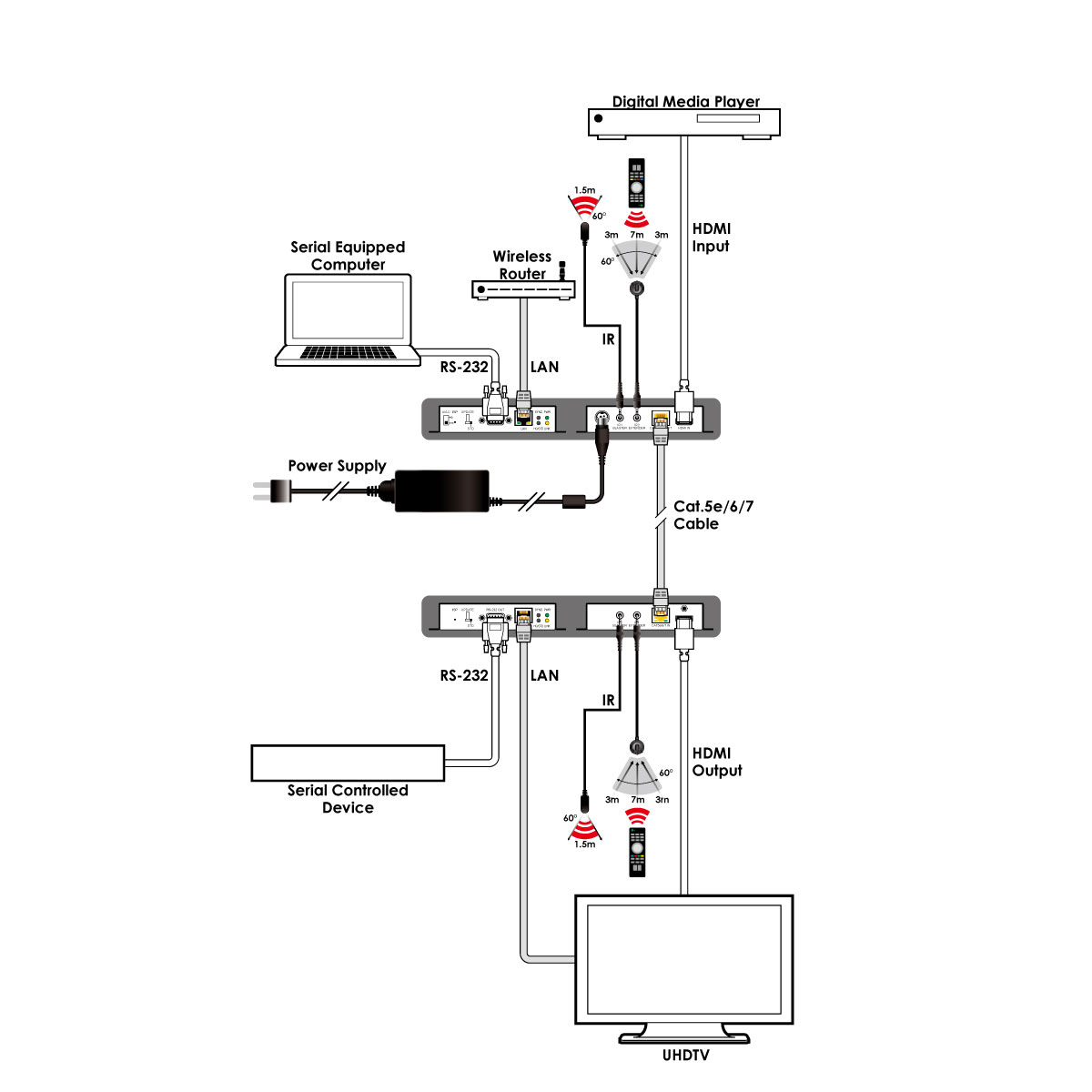

This transmitter and receiver set is a great solution for extending UHD video and audio as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances up to 100 meters. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards.

Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed.

Multiple data and control interfaces are also provided, including IR, RS-232 and LAN connections. The Receiver (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Transmitter (PSE), allowing for greater flexibility within different installation scenarios.

Nguồn thông tin kỹ thuật và hình ảnh: trang sản phẩm chính thức của CYP, truy cập ngày 22/10/2026.

Thông số kỹ thuật

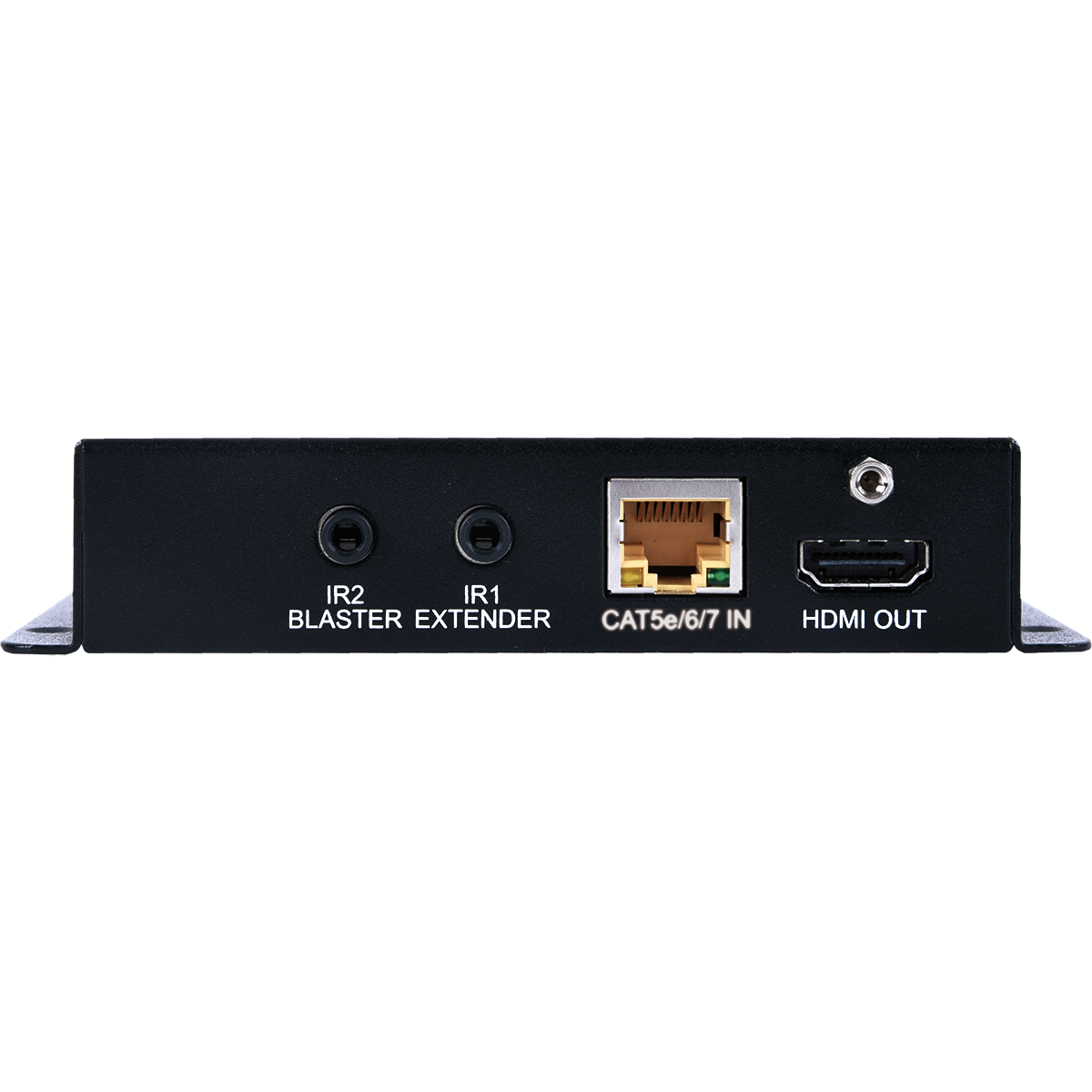

Interfaces – Input Port	1×HDBaseT (RJ-45)
Interfaces – Output Port	1×HDMI (Type-A)

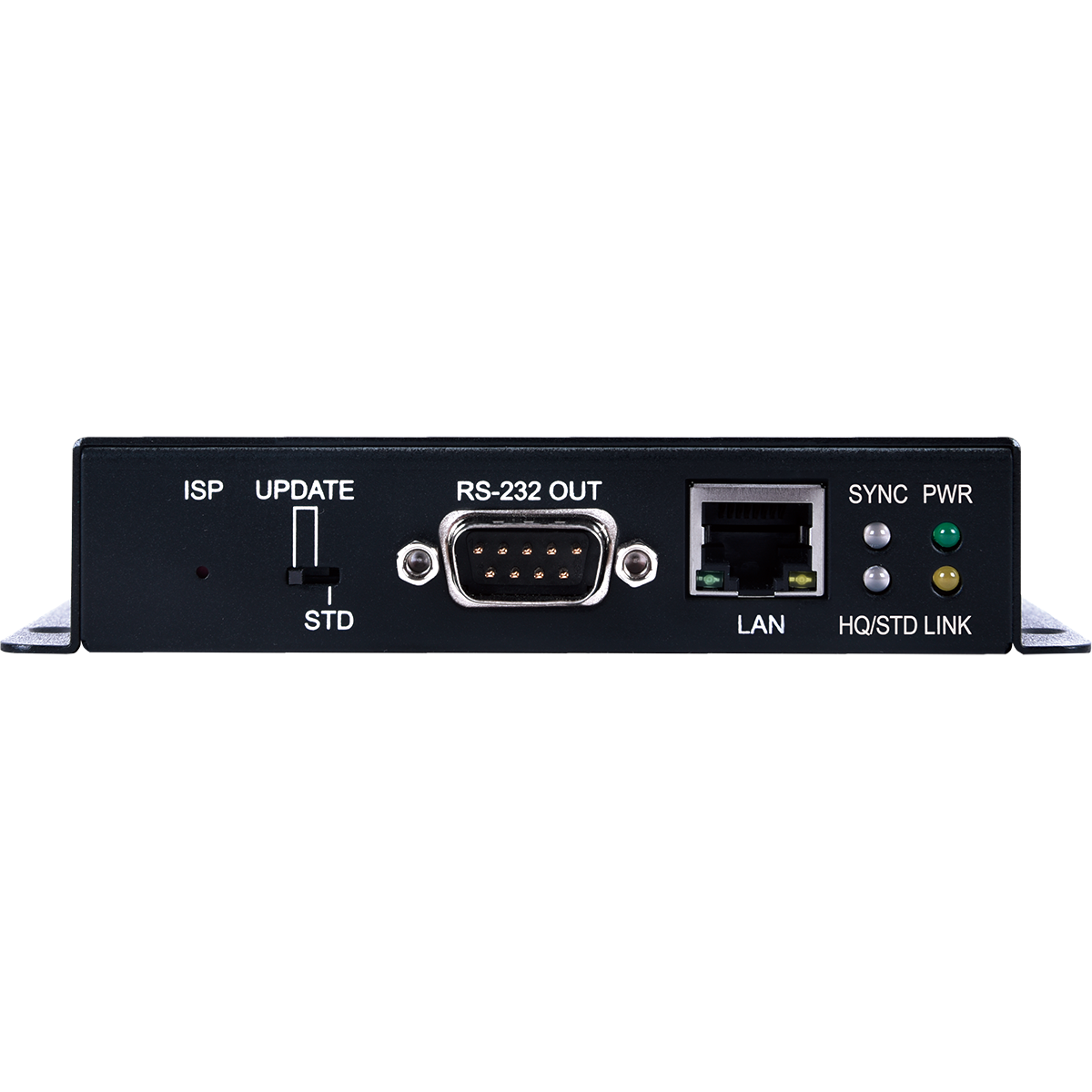

Interfaces – Pass-through Port	1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232 (DE-9) 1×LAN [RJ-45]
Video – HDMI Compliance	HDMI 2.0 (DVI 1.0)
Video – HDCP Compliance	2.X
Video – Input Signal Types	4K@60 8bit YUV 4:4:4, HDR
Video – Output Signal Type	4K@60 8bit YUV 4:4:4, HDR
Resolutions – Maximum Input	Cat.5e/6/7; 4096×2160p@60
Resolutions – Maximum Output	HDMI; 4096×2160p@60
Power – Power Supply	PoH
Power – Power Consumption	10W
Enclosure – Chassis Material	Metal (Steel)
Enclosure – Chassis Color	Black
Enclosure – Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×25mm×117mm [All Inclusive]
Enclosure – Weight	386g
Field Firmware Update – Interface	RS232
Ordering Information – Model No.	Product Description
Ordering Information – CH-1527RXV	UHD+ HDMI over HDBaseT Receiver with HDR
Ordering Information – CH-1527TXV	UHD+ HDMI over HDBaseT Transmitter with HDR
