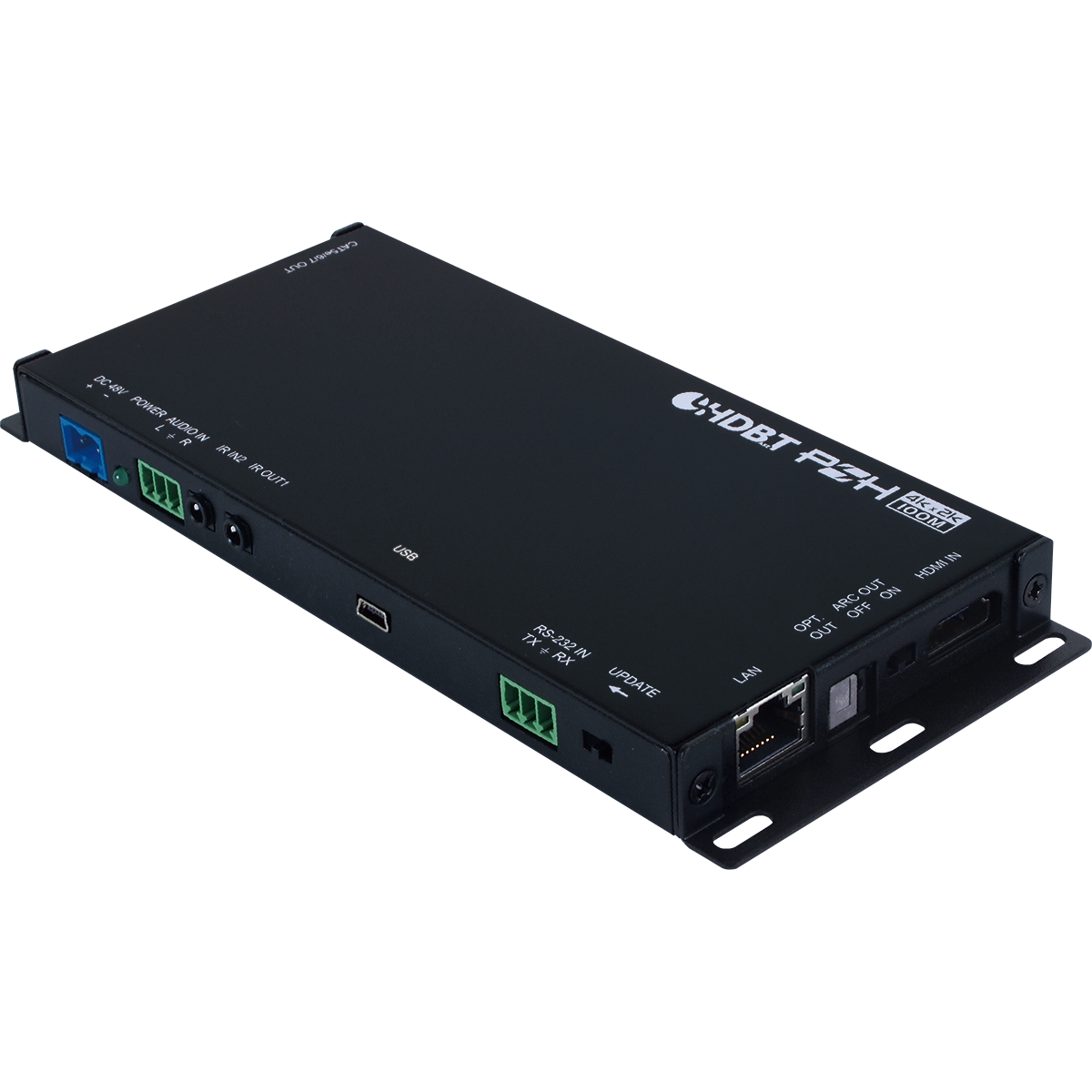

Bộ mở rộng tín hiệu CYP CH-1602TX

Mã sản phẩm: CH-1602TX
Thương hiệu: Cypress (CYP)

CH-1602TX là HDMI over HDBaseT Transmitter with Optical Audio Return (OAR) của Cypress (CYP), thuộc danh mục Extender; phù hợp triển khai hệ thống nghe nhìn tích hợp chuyên nghiệp.

Giá Liên Hệ

Xuất xứ:: Đài Loan
Bảo hành:: Theo chính sách hãng

Hàng chính hãng, hỗ trợ kỹ thuật và bảo hành theo chính sách nhà sản xuất.

Tính năng và lợi ích

Thông tin được tổng hợp theo cấu hình tham khảo. Vui lòng liên hệ kỹ sư VN TLH để xác nhận cấu hình trước khi đặt hàng.

Supports the HDBaseT 2.0 specification over a single Cat.6/7 cable up to
100m/328ft and Cat.5e cable up to 90m/295ft
HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/ RS-232 pass-through)
Receiver (PD) is powered by 48V PoH from the transmitter (PSE)
HDMI with 3D & 4K@60Hz (YUV 4:2:0) support
1×USB 2.0 Mini-B port (on the transmitter), 2×USB 2.0 Type A ports (on the receiver)
Supports pass-through of HD audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Supports optical audio sampling rates up to 48kHz
Supports external analog and digital audio extension including support for ARC (Audio Return Channel)
Supports RS-232 baud up to 115200bps
Ultra-thin mechanical design

CH-1602TX — HDMI over HDBaseT Transmitter with Optical Audio Return (OAR).

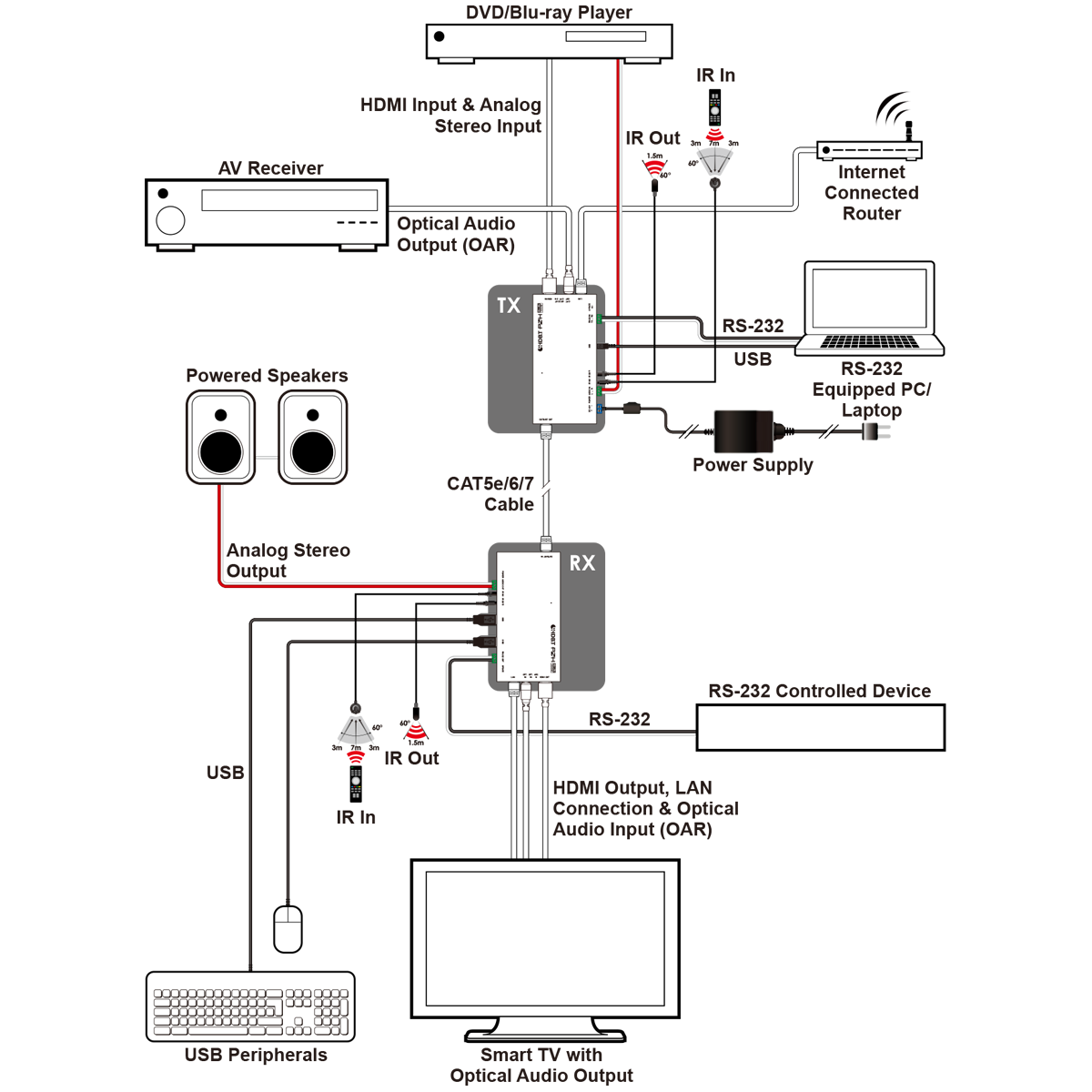

This HDBaseT 2.0 Transmitter and Receiver set can send uncompressed UHD video and audio over a single Cat.5e/6/7 cable up to 100m. It has the added benefit of extending control and communication signals through the built-in Ethernet, USB, RS-232 and IR ports. Independent external digital and analog audio transmission capability gives users the extra convenience of additional audio connections.

This system supports connecting any standard USB 2.0 host to the Transmitter, enabling the extension of the USB connection to up to 2 USB ports located on the Receiver, allowing it to act like a USB hub. The integrated 48V PoH (Power over HDBaseT) support provides power to the Receiver (PD) from the Transmitter (PSE), eliminating the need for a separate power supply for the Receiver. The ultra-thin mechanical design allows for lexibility in mounting locations, saving space and making your presentation space orderly and tidy.

Nguồn thông tin kỹ thuật và hình ảnh: trang sản phẩm chính thức của CYP, truy cập ngày 22/10/2026.

Thông số kỹ thuật

Interfaces – Input Port	1 HDMI (Type-A) 1 USB 2.0 (Mini-B) 1 Stereo Audio (Terminal Block) 1 LAN (RJ45) 1 IR Extender (3.5mm) 1 RS-232 (Terminal Block)
Interfaces – Output Port	1 HDBaseT(RJ-45) 1 Optical Audio (TOSLINK) 1 IR Blaster (3.5mm)
Video – HDMI Compliance	HDMI 2.0 (DVI 1.0)
Video – HDCP Compliance	2.X
Video – Input Signal Types	4K@60 YUV 4:2:0
Video – Output Signal Type	4K@60 YUV 4:2:0
Resolutions – Maximum Input	HDMI; 4096x2160p@60 YUV 4:2:0
Resolutions – Maximum Output	HDBaseT; 4096x2160p@60 YUV 4:2:0
Power – Power Supply	48VDC/0.83A (US/EU standards, CE/FCC/ UL certified)
Power – Power Consumption	16.72W
Enclosure – Chassis Material	Aluminum
Enclosure – Chassis Color	Black
Enclosure – Dimensions (W×H×D)	180mm×16mm×80mm [Case Only] 180mm×16mm×80mm [All Inclusive]
Enclosure – Weight	354g
Field Firmware Update – Interfaces	PC
Ordering Information – Model No.	Product Description
Ordering Information – CH-1602TX	HDMI over HDBaseT Transmitter with Optical Audio Return (OAR)
Ordering Information – CH-1602RX	HDMI over HDBaseT Receiver with Optical Audio Return (OAR)
