Bộ xử lý tỷ lệ tín hiệu CYP CH-2535RX

Mã sản phẩm: CH-2535RX
Thương hiệu: Cypress (CYP)

CH-2535RX là HDBaseT Rx & 4K UHD+ to HDMI Scaler của Cypress (CYP), thuộc danh mục Scaler; phù hợp triển khai hệ thống nghe nhìn tích hợp chuyên nghiệp.

Giá Liên Hệ

Xuất xứ:: Đài Loan
Bảo hành:: Theo chính sách hãng

Hàng chính hãng, hỗ trợ kỹ thuật và bảo hành theo chính sách nhà sản xuất.

Tính năng và lợi ích

Thông tin được tổng hợp theo cấu hình tham khảo. Vui lòng liên hệ kỹ sư VN TLH để xác nhận cấu hình trước khi đặt hàng.

External analog stereo audio embedding/de-embedding support
Support for automatic input detection and automatic switching on source loss
Supports controlling a wide variety of conference room equipment such as media players, projectors, projection screens, curtains, etc. via Ethernet, RS-232, IR, or relay (method is device dependent)
Support for IR code learning as well as IR broadcasting
Supports Telnet for both client and server functionality
Control system supports defining up to 16 devices to simplify control and management of controlled devices within the system
Integrated macro command lists support activating multiple events from a single button press (up to 16 actions per macro)
Battery backed up RTC (Real Time Clock) to control scheduled macro execution and program event activation

CH-2535RX — HDBaseT Rx & 4K UHD+ to HDMI Scaler.

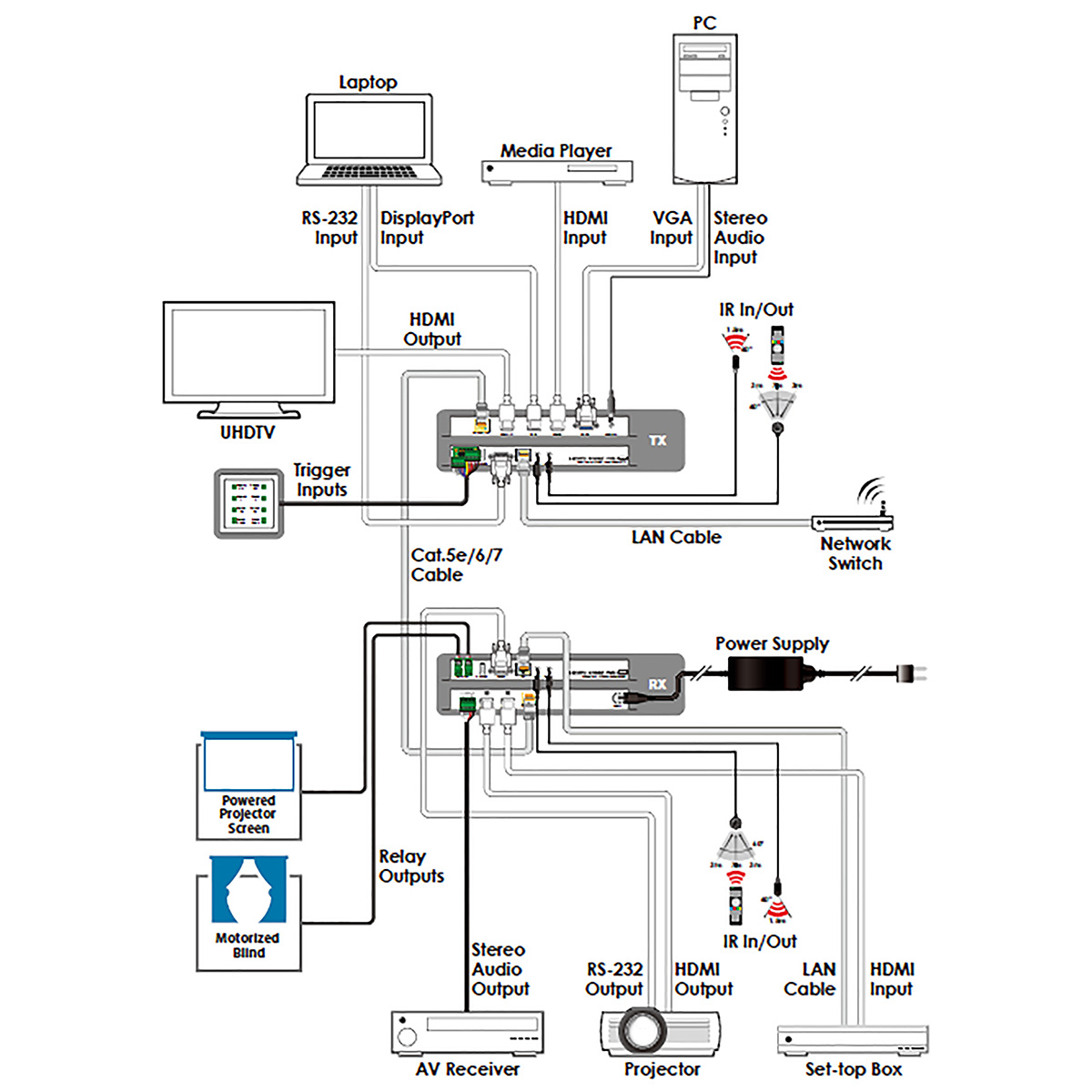

This new collaboration Transmitter and Receiver system is a convenient turnkey solution for video selection and extension in conference rooms, classrooms and showrooms. These units provide not only AV conversion and extension but also an intelligent and easy way to control devices throughout the entire venue. The three most common input interfaces (HDMI, DisplayPort, and VGA) are supported by the Transmitter, providing the ultimate in source compatibility and flexibility. The HDMI input support resolution/ timing up to a maximum of 4K@60Hz (4:4:4, 8-bit) The HDBaseT input can received over Cat.6/7 cable up to 70m (at 4K@30Hz). The Receiver can scale the HDBaseT video source, or local HDMI input, to match the connected display’s resolution requirements.

Receiver also supports 2 relay connections, providing instant control over projector screens, curtains, lights, etc. The unique macro programmability allows for the implementation of multiple command activations from a single button press. The units is controllable via top panel controls (with OSD), WebGUI, Telnet, and RS-232.

Nguồn thông tin kỹ thuật và hình ảnh: trang sản phẩm chính thức của CYP, truy cập ngày 22/10/2026.

Thông số kỹ thuật

Interfaces – Input Port	1 HDMI(Type-A) 1 HDBaseT(Cat.5e/6/7)
Interfaces – Output Port	1 HDMI(Type-A) 1 Stereo Audio (Terminal Block)
Interfaces – Control I/O	1 IR Blaster (3.5mm) 1 IR Extender (3.5mm) 1 RS-232 (9-pin D-sub) 1 LAN (RJ45) 2 Relay (Terminal Block)
Video – HDMI Compliance	HDMI 2.0 (DVI 1.0)
Video – HDCP Compliance	HDCP 2.X
Video – Input Signal Types	4K@60 8bit YUV 4:4:4
Video – Output Signal Type	4K@60 8bit YUV 4:2:0
Resolutions – Maximum Input	HDMI; 4096×2160p@60
Resolutions – HDBaseT	4096×2160p@30
Resolutions – Maximum Output	HDMI; 4096×2160p@60
Power – Power Supply	24V/2.7A DC(US/EU standards, CE/FCC/UL certified)
Power – Power Consumption	24W
Enclosure – Chassis Material	Metal (Steel)
Enclosure – Chassis Color	Black
Enclosure – Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×120mm [All Inclusive]
Enclosure – Weight	430g
Field Firmware Update – Interface	USB, WebGUI
Ordering Information – Model No.	Product Description
Ordering Information – CH-2535RX	HDBaseT Rx & 4K UHD+ to HDMI Scaler
Ordering Information – CH-2535TX	Multi-Format 4K UHD+ over HDBaseT Tx
