Bộ mở rộng tín hiệu CYP CH-2606RX

Mã sản phẩm: CH-2606RX
Thương hiệu: Cypress (CYP)

CH-2606RX là UHD+ HDBaseT to HDMI Receiver with USB (4K@60 420 up to 100M) của Cypress (CYP), thuộc danh mục Extender; phù hợp triển khai hệ thống nghe nhìn tích hợp chuyên nghiệp.

Giá Liên Hệ

Xuất xứ:: Đài Loan
Bảo hành:: Theo chính sách hãng

Hàng chính hãng, hỗ trợ kỹ thuật và bảo hành theo chính sách nhà sản xuất.

Tính năng và lợi ích

Thông tin được tổng hợp theo cấu hình tham khảo. Vui lòng liên hệ kỹ sư VN TLH để xác nhận cấu hình trước khi đặt hàng.

3 USB 2.0 Type A ports and 1 USB 2.0 Type B port
HDBaseT input receives video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/230ft at 4K when using Cat.6a/7
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, PoH (PSE), and control (bi-directional IR/RS-232/USB 2.0)
Supports CEC bypass
Reception of independent analog stereo audio extension
Flexible USB host selection using the front panel button
Note: Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
Supports local power, or power via PoH from Receiver (PSE) to Transmitter (PD) (compatible Receivers only)

CH-2606RX — UHD+ HDBaseT to HDMI Receiver with USB (4K@60 420 up to 100M).

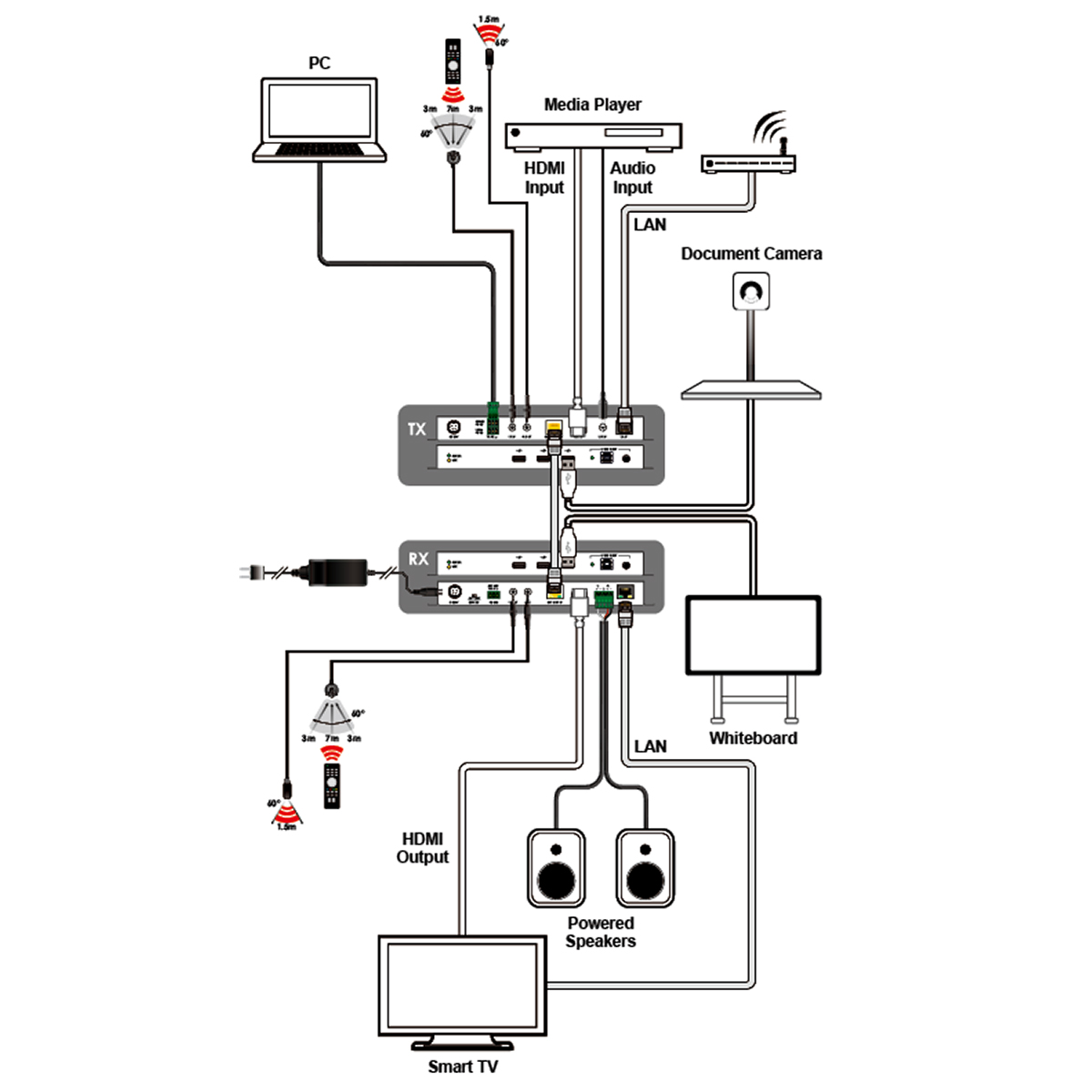

CH-2606RX adopts HDBaseT 2.0 technology for extending uncompressed 4k and HD video, audio, Ethernet, control and power along a single Cate 5e/6/7 cable up to 100 meters. When paired with this unit’s standard Transmitter, 2 switchable USB 2.0 host (Type B) connections are available (1 on the Transmitter, 1 on the Receiver) which can connect to devices on up to 6 USB 2.0 (Type A) ports (3 on the Transmitter, 3 on the Receiver) forming a highly flexible KVM extension configuration (Note: Only 1 USB host may be active at a time). This Receiver (PSE) can provide PoH (Power over HDBaseT) power to the connected HDBaseT Transmitter (PD) (compatible Transmitters only), This unit is controllable via front panel button.

Nguồn thông tin kỹ thuật và hình ảnh: trang sản phẩm chính thức của CYP, truy cập ngày 22/10/2026.

Thông số kỹ thuật

Interfaces – Input Port	1 HDBT(RJ45)
Interfaces – Output Port	1 HDMI (Type-A) 1 Terminal Block
Interfaces – Control I/O	3 USB Type-A 1 USB Type-B 1 IR Extender [3.5mm] 1 IR Blaster [3.5mm] 1 RS232 (3-pin Terminal Block) 1 LAN (RJ-45)
Video – HDMI Compliance	HDMI 2.0 (DVI 1.0)
Video – HDCP Compliance	2.x
Video – Input Signal Type	4K@60 YUV 4:2:0
Video – Output Signal Type	4K@60 YUV 4:2:0
Video – Maximum Input	HDBT; 4096×2160p@30
Video – Maximum Output	HDMI; 4096×2160p@30
Audio – Input Signal Types	HDMI, Stereo
Audio – Output Signal Types	Stereo
Audio – HDMI OUT	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream bypass
Power – Power Supply	24V/2.7A
Power – Power Consumption	40.44W (Full load)
Enclosure – Chassis Material	Metal (Steel)
Enclosure – Chassis Color	Black
Enclosure – Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×110mm [All Inclusive]
Enclosure – Weight	647g
Model No. – Model No.	Product Description
Model No. – CH-2606RX	UHD+ HDBaseT to HDMI Receiver with USB
Model No. – CH-2606TX	UHD+ HDMI to HDBaseT Transmitter with USB
Model No. – CH-2603TX	UHD+ HDMI/DP/VGA/USB to HDMI/HDBaseT Transmitter
