Bộ chia tín hiệu CYP CPLUS-V2TN

Mã sản phẩm: CPLUS-V2TN
Thương hiệu: Cypress (CYP)

CPLUS-V2TN là UHD+ 1×2 HDMI Splitter của Cypress (CYP), thuộc danh mục Splitter; phù hợp triển khai hệ thống nghe nhìn tích hợp chuyên nghiệp.

Giá Liên Hệ

Xuất xứ:: Đài Loan
Bảo hành:: Theo chính sách hãng

Hàng chính hãng, hỗ trợ kỹ thuật và bảo hành theo chính sách nhà sản xuất.

Tính năng và lợi ích

Thông tin được tổng hợp theo cấu hình tham khảo. Vui lòng liên hệ kỹ sư VN TLH để xác nhận cấu hình trước khi đặt hàng.

HDMI with HDR, 3D & 4K@60Hz support
Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats
Automatic 4K to 1080p down-scaling and color space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID
Independent HDCP management engine for each output ensures stable HDCP performance
Simple to use EDID management options
Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays

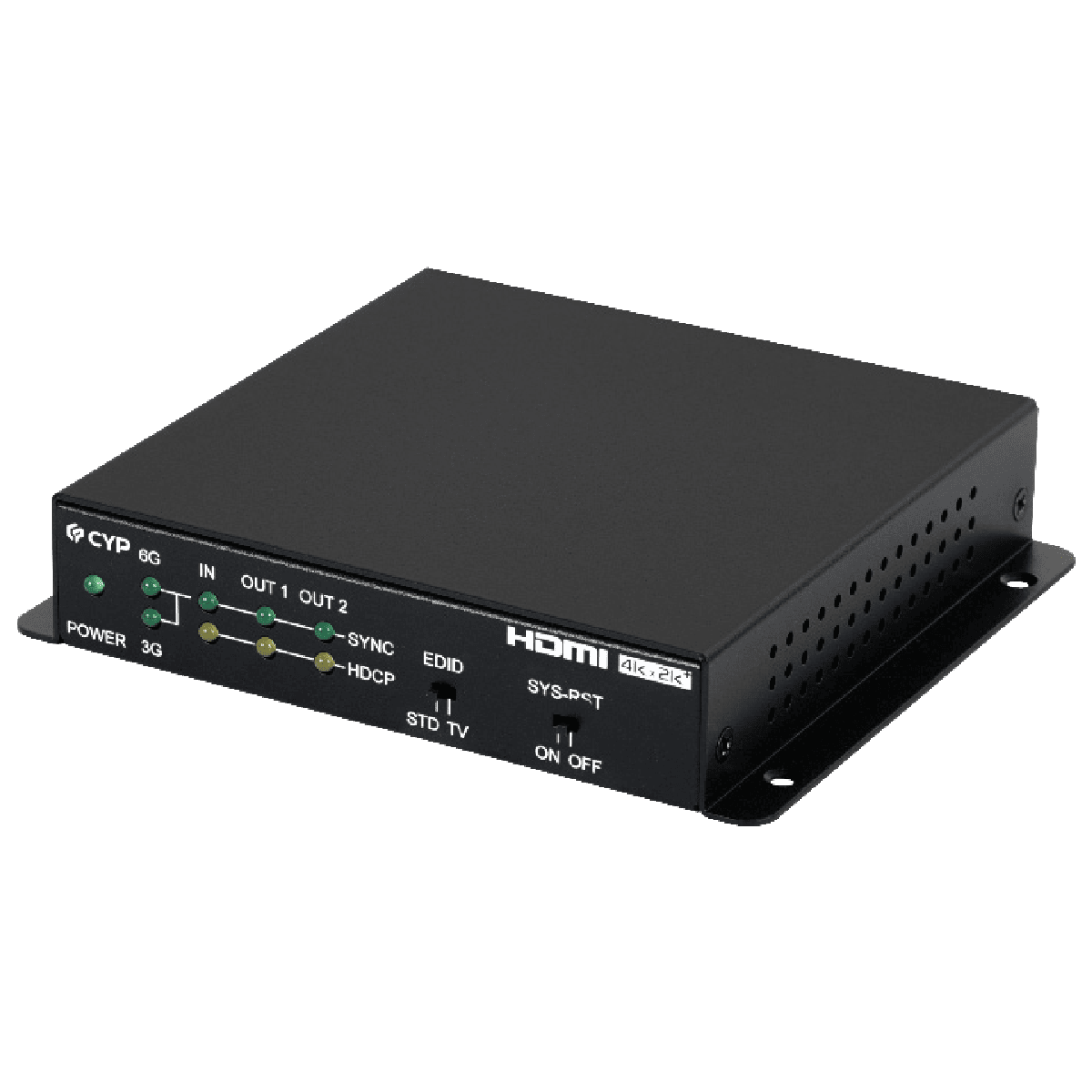

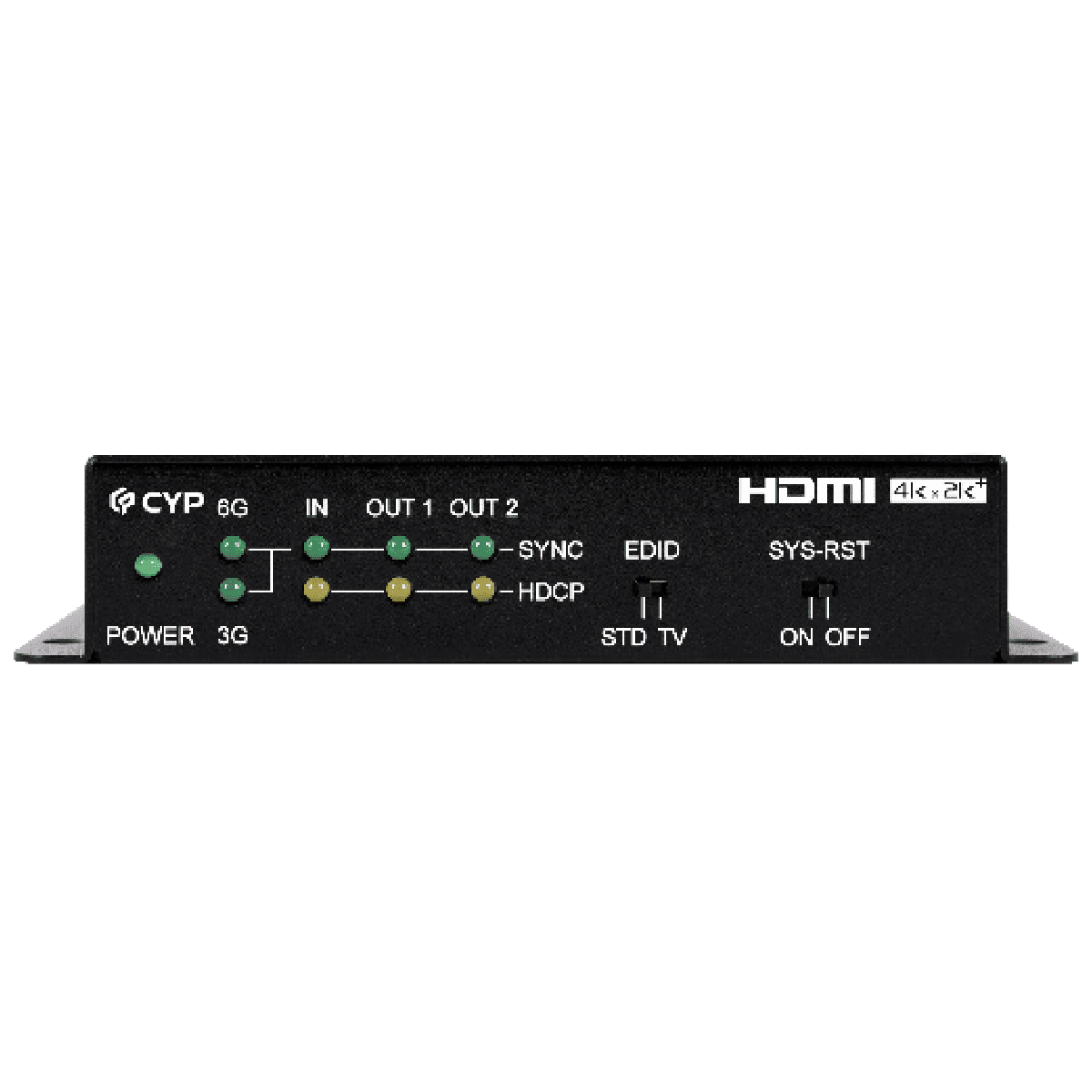

Controllable via front-panel switches

CPLUS-V2TN — UHD+ 1×2 HDMI Splitter.

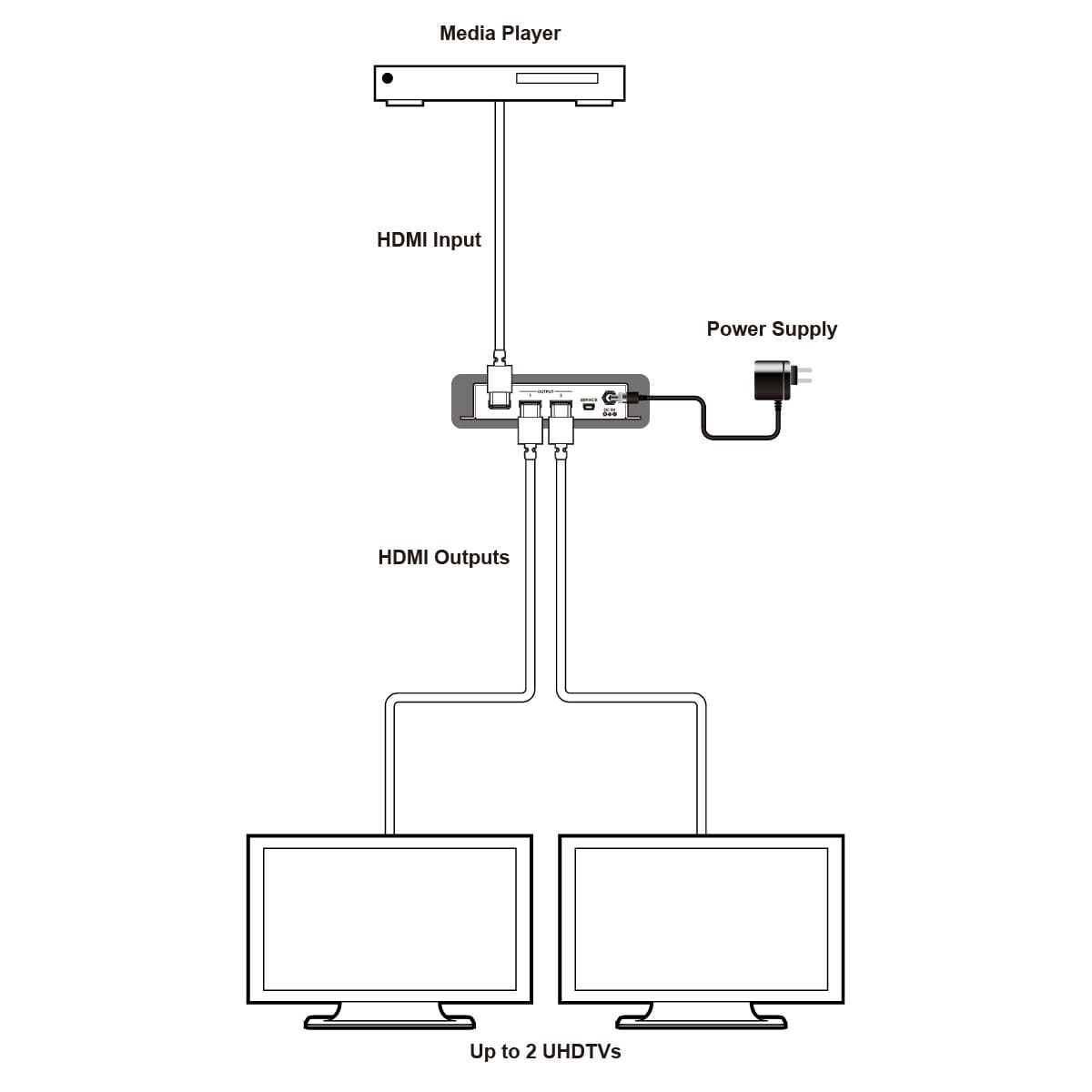

This 4K UHD HDMI Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to 2 outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance. When a mixture of displays with different specifications are connected, each output will automatically scale 4K to 1080p or apply color space conversion (4:4:4 to 4:2:0), as appropriate, based on each connected display’s EDID. Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays is also included. This unit is controllable via simple front-panel switches with easy to read informational LEDs.

Nguồn thông tin kỹ thuật và hình ảnh: trang sản phẩm chính thức của CYP, truy cập ngày 22/10/2026.

Thông số kỹ thuật

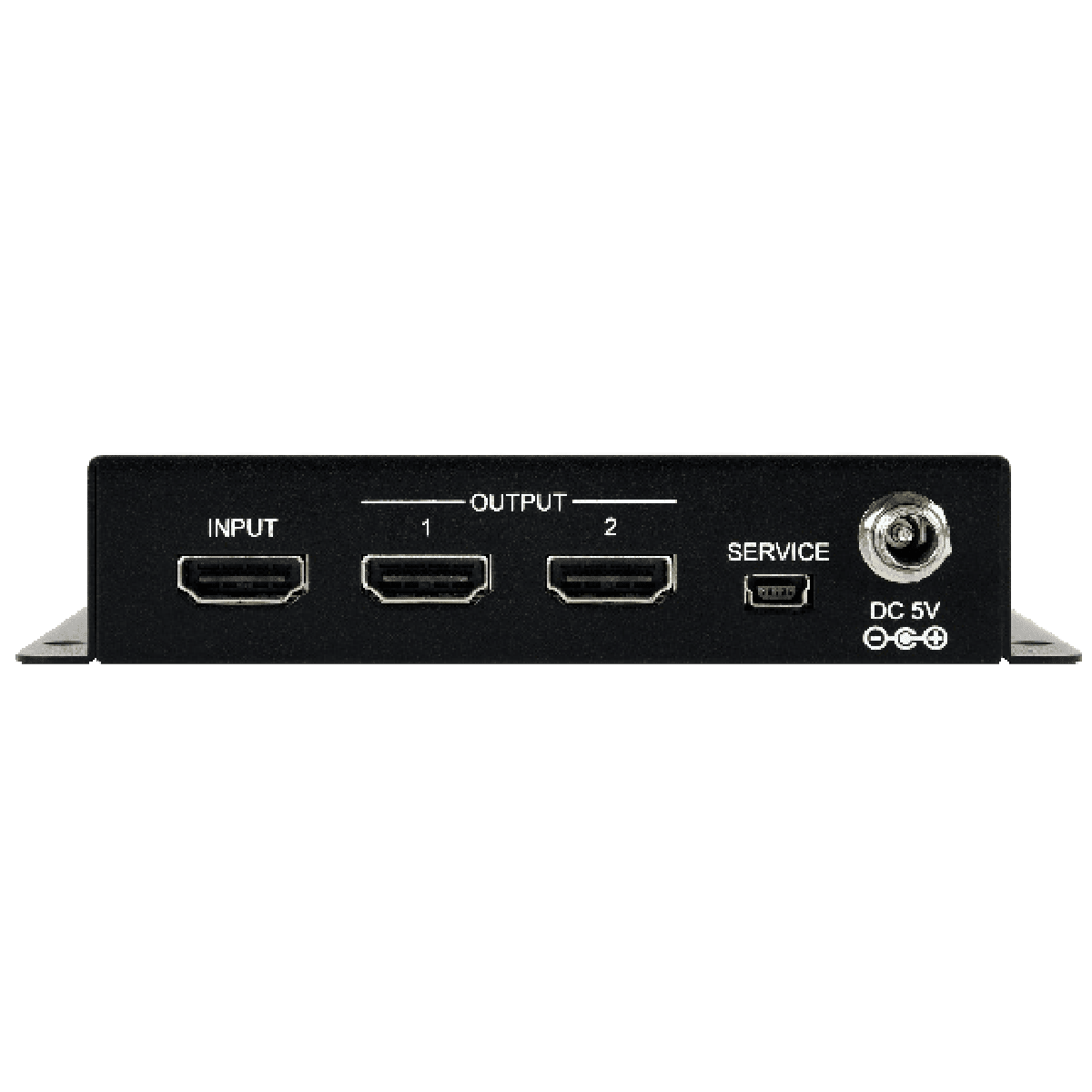

Interfaces – Input Port	1 HDMI (Type-A)
Interfaces – Output Port	2 HDMI (Type-A)
Interfaces – Service Port	USB (Mini B)
Video – HDMI Compliance	HDMI 2.0 (DVI 1.0)
Video – HDCP Compliance	2.2
Video – Input Signal Type	4K@60 8bit YUV 4:4:4, HDR 12
Video – Output Signal Type	4K@60 8bit YUV 4:4:4, HDR 12
Video – Maximum Input	HDMI; 4096×2160p@60
Video – Maximum Output	HDMI; 4096×2160p@60
Digital Format	HDMI LPCM(8 Channels), Bitstream, HD Bitstream
Power – Power Supply	5V/1.2A DC
Power – Power Consumption	2.2W
Enclosure – Chassis Material	Metal
Enclosure – Chassis Color	Black
Enclosure – Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×30mm×117mm [All Inclusive]
Enclosure – Weight	358g
Model No. – Model No.	Product Description
Model No. – CPLUS-V2TN	UHD + 1×2 HDMI Splitter
