Bộ chia tín hiệu CYP CPLUS-V4TN

Mã sản phẩm: CPLUS-V4TN
Thương hiệu: Cypress (CYP)

CPLUS-V4TN là UHD+ 1x4 HDMI Splitter của Cypress (CYP), thuộc danh mục Splitter; phù hợp triển khai hệ thống nghe nhìn tích hợp chuyên nghiệp.

Giá Liên Hệ

Xuất xứ:: Đài Loan
Bảo hành:: Theo chính sách hãng

Hàng chính hãng, hỗ trợ kỹ thuật và bảo hành theo chính sách nhà sản xuất.

Tính năng và lợi ích

Thông tin được tổng hợp theo cấu hình tham khảo. Vui lòng liên hệ kỹ sư VN TLH để xác nhận cấu hình trước khi đặt hàng.

Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals
Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats
Automatic 4K to 1080p down-scaling and color space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID
Independent HDCP management engine for each output ensures stable HDCP performance
Simple to use EDID management options
Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays

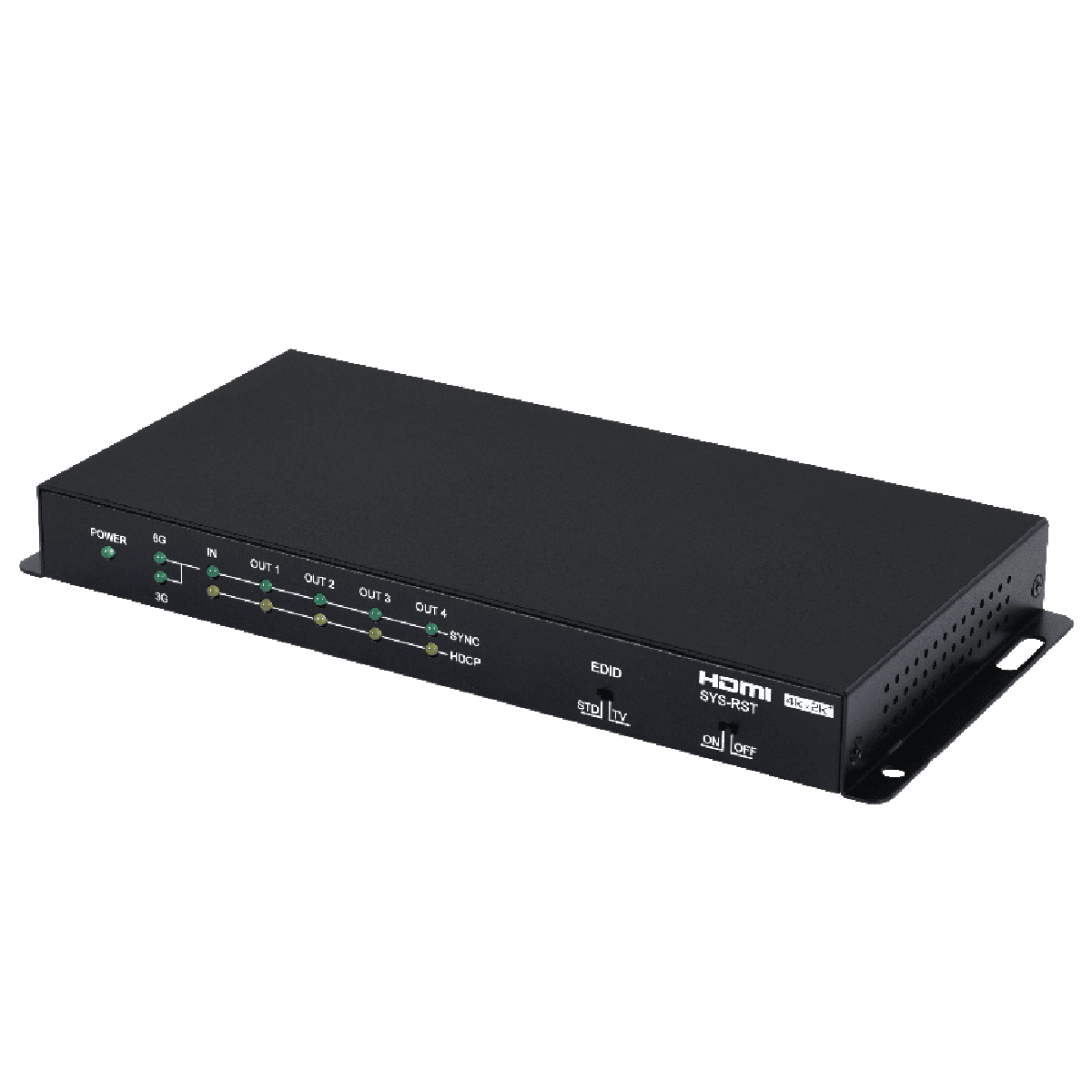

Controllable via front-panel switches

CPLUS-V4TN — UHD+ 1x4 HDMI Splitter.

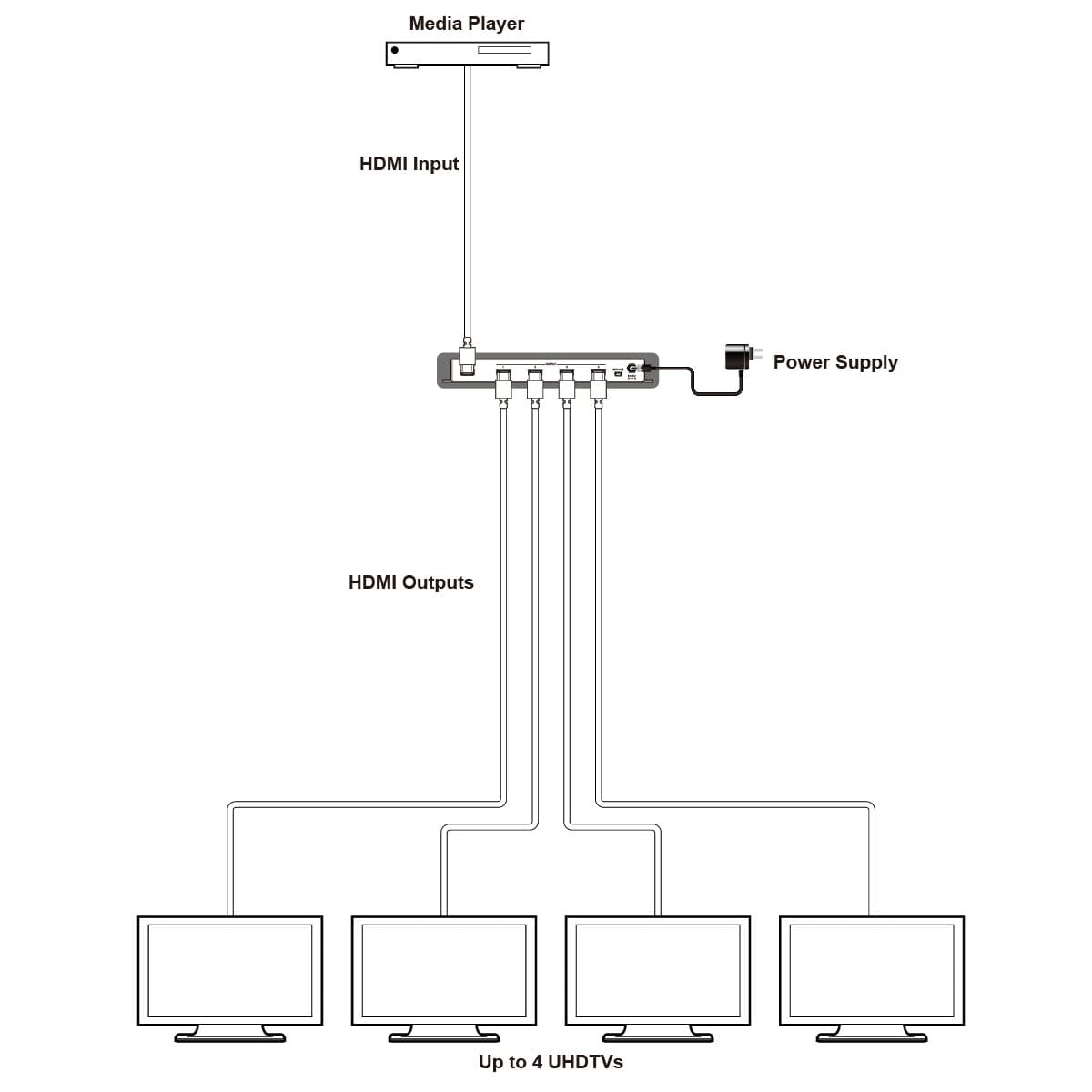

This 4K UHD HDMI Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to 4 outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance.

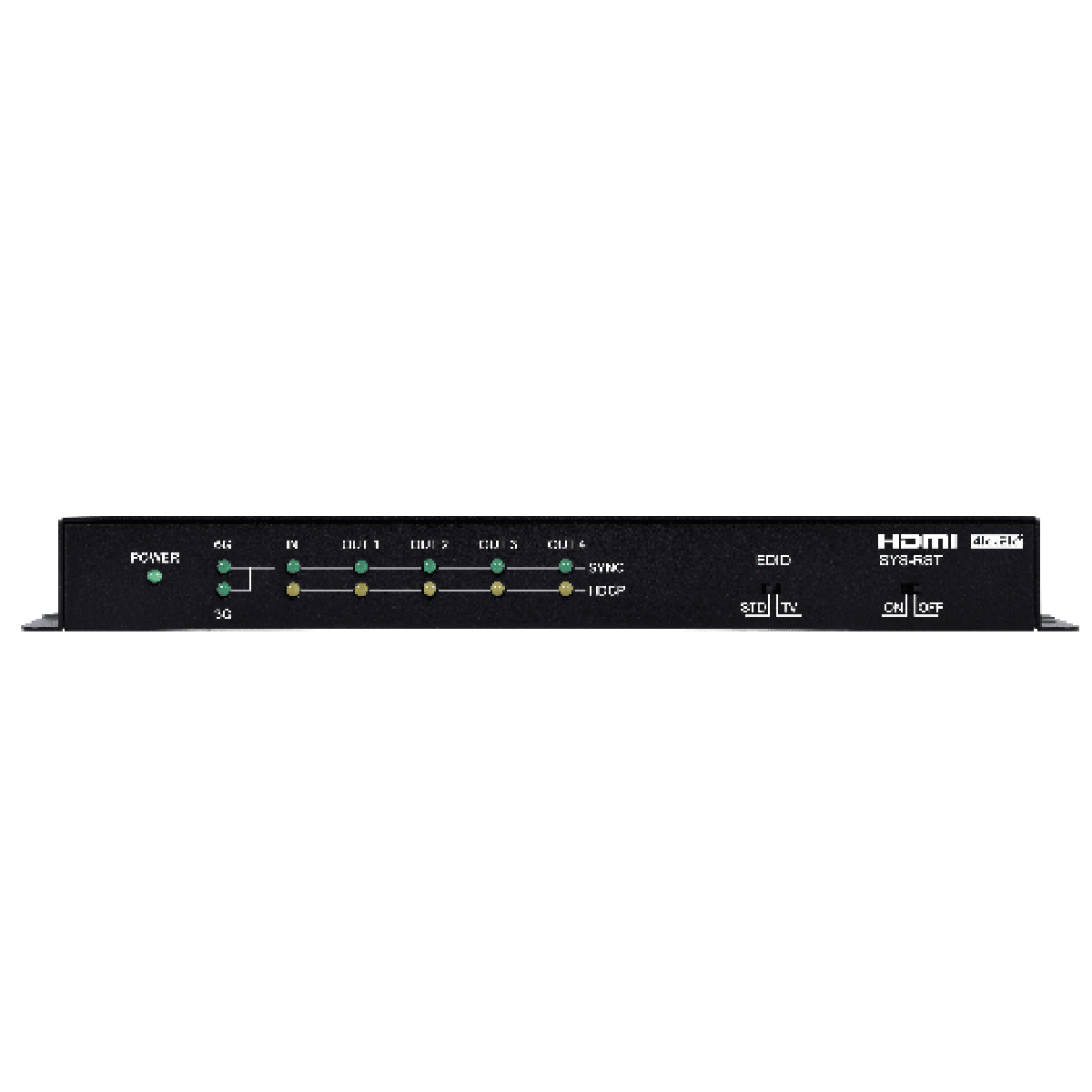

When a mixture of displays with different specifications are connected, each output will automatically scale 4K to 1080p or apply color space conversion (4:4:4 to 4:2:0), as appropriate, based on each connected display’s EDID. Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays is also included. This unit is controllable via simple front-panel switches with easy to read informational LEDs.

Nguồn thông tin kỹ thuật và hình ảnh: trang sản phẩm chính thức của CYP, truy cập ngày 22/10/2026.

Thông số kỹ thuật

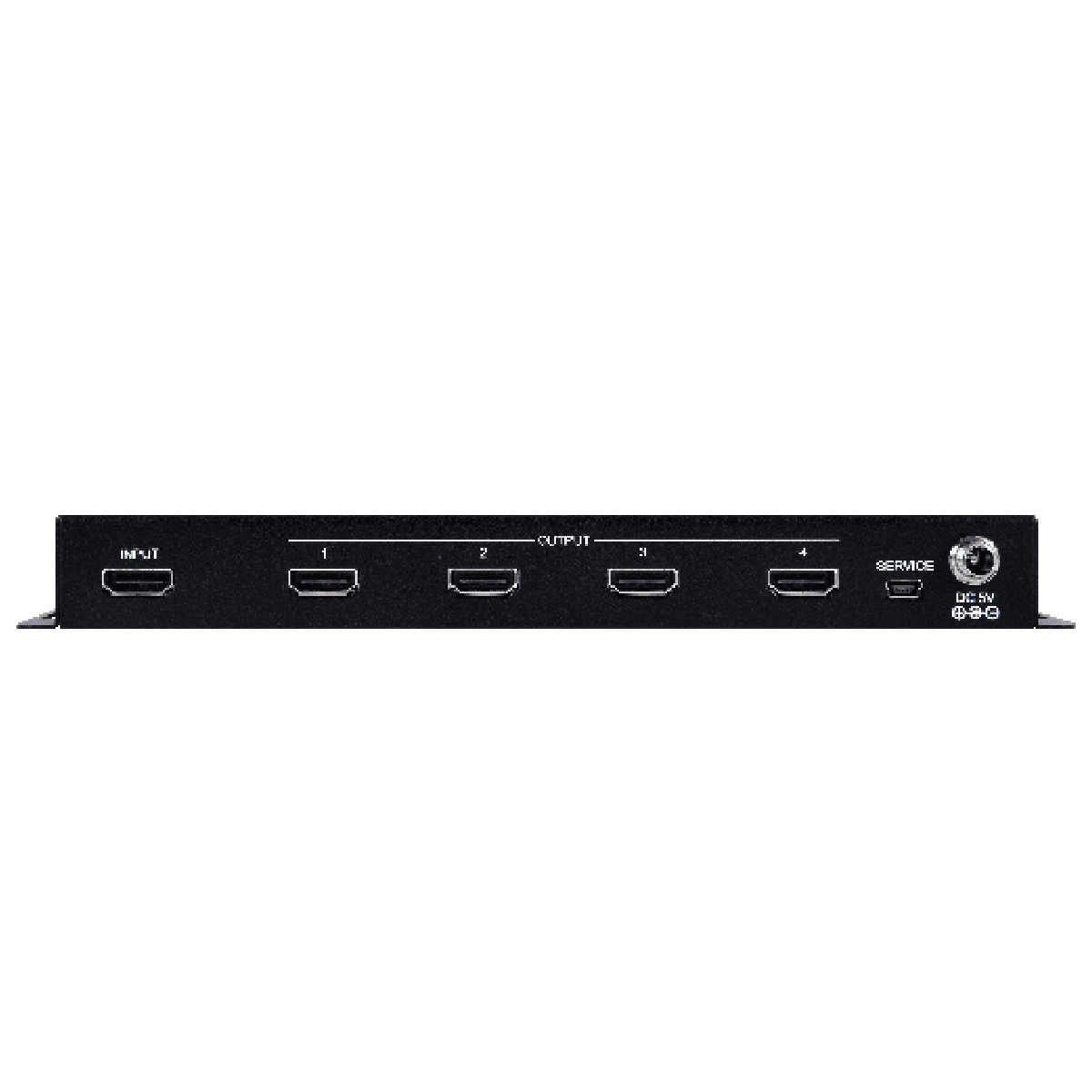

Interfaces – Input Port	1 HDMI (Type A)
Interfaces – Output Port	4 HDMI
Interfaces – Service Port	1 USB (Mini B)
Video – HDMI Compliance	2.0
Video – HDCP Compliance	2.x
Video – Input Signal Type	4K@60 8-bit YUV 4:4:4, HDR10
Video – Output Signal Type	4K@60 8-bit YUV 4:4:4, HDR10
Video – Maximum Input	4096×2160p@60 YUV 4:4:4 8 bit
Video – Maximum Output	4096×2160p@60 YUV 4:4:4 8 bit
Audio – HDMI	LPCM (8 CH), Bitstream, HD Bitstream
Power – Power Supply	5V/2.6A DC (Locking)
Power – Power Consumption	3.08W
Enclosure – Chassis Material	Metal (Steel)
Enclosure – Chassis Color	Black
Enclosure – Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×30mm×117mm [All Inclusive]
Enclosure – Weight	608g
Model No.	Product Description
CPLUS-V4TN	UHD + 1x4 HDMI Splitter
